Geely Emgrand L Raytheon Hi·P, a new new energy car under the Geely brand, is a new new energy compact car under the Geely brand, including two compact cars, the travel version and the executive version
Configuration parameter
As the Emgrand L plug-in hybrid version, the new car is undoubtedly aimed at the current fire of BYD Qin PLUS DM-i (11.18-151,800 yuan), its length, width and height of 4735/1815/1495mm, the wheelbase is 2700mm, located in the A-class car.
In terms of intelligence, the whole system is standard equipped with Geely Galaxy OS ecosystem, adopts the E02 new generation high-performance digital cockpit platform, integrates the same level of leading APP intelligent remote control, intelligent voice interaction, TTS live voice customization and other rich advanced scientific and technological functions, and supports the whole vehicle FOTA upgrade and other functions. Safety configuration is essential, it is equipped with L2 intelligent driving assistance system, in particular ELKA emergency lane keeping assistance added to the collision risk identification of vehicles and road edge, AEB-P pre-collision safety system added two-wheeled scene identification. Emgrand L Raytheon Hi·P is equipped with a new 1.5TD four-cylinder Raytheon hybrid engine, 3-gear hybrid electric drive DHT Pro, BMA super hybrid three major technologies, which can achieve "3.8L minimum power loss fuel consumption, 6.9s fastest 100km acceleration, 100km pure battery life, 1300km longest battery life" performance.
Geely Emgrand L Raytheon Hi · P length, width and height are 4735/1815/1495 mm, wheelbase is 2700 mm, loss fuel consumption (NEDC) 3.8L / 100km, comprehensive range 1300km, pure electric range (NEDC) 100km, 100km acceleration time 6.9s.
In terms of power, Emgrand L Thor Hi · P adopts 1.5T intermixing system, system comprehensive power 233kW, comprehensive torque 610N · m, equipped with 1.5TD turbocharged direct injection engine in the cylinder, using 3-speed variable frequency electric drive DHT Pro gearbox.
Exterior and interior

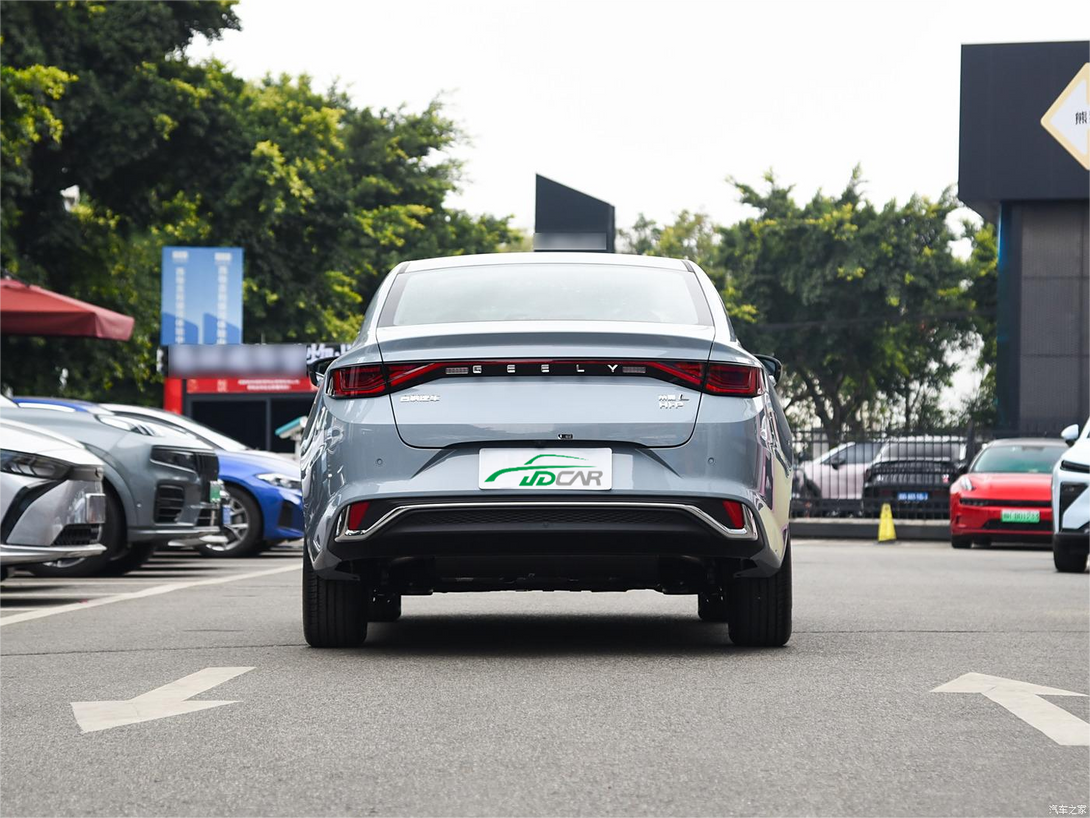

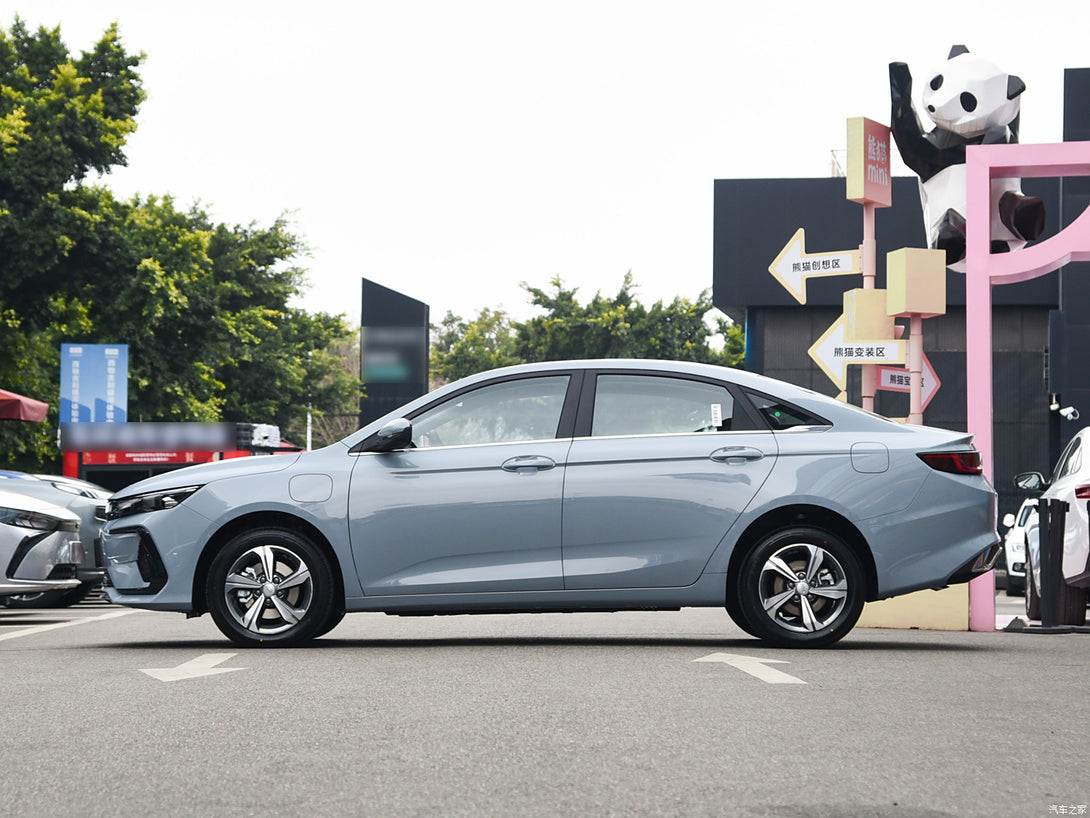

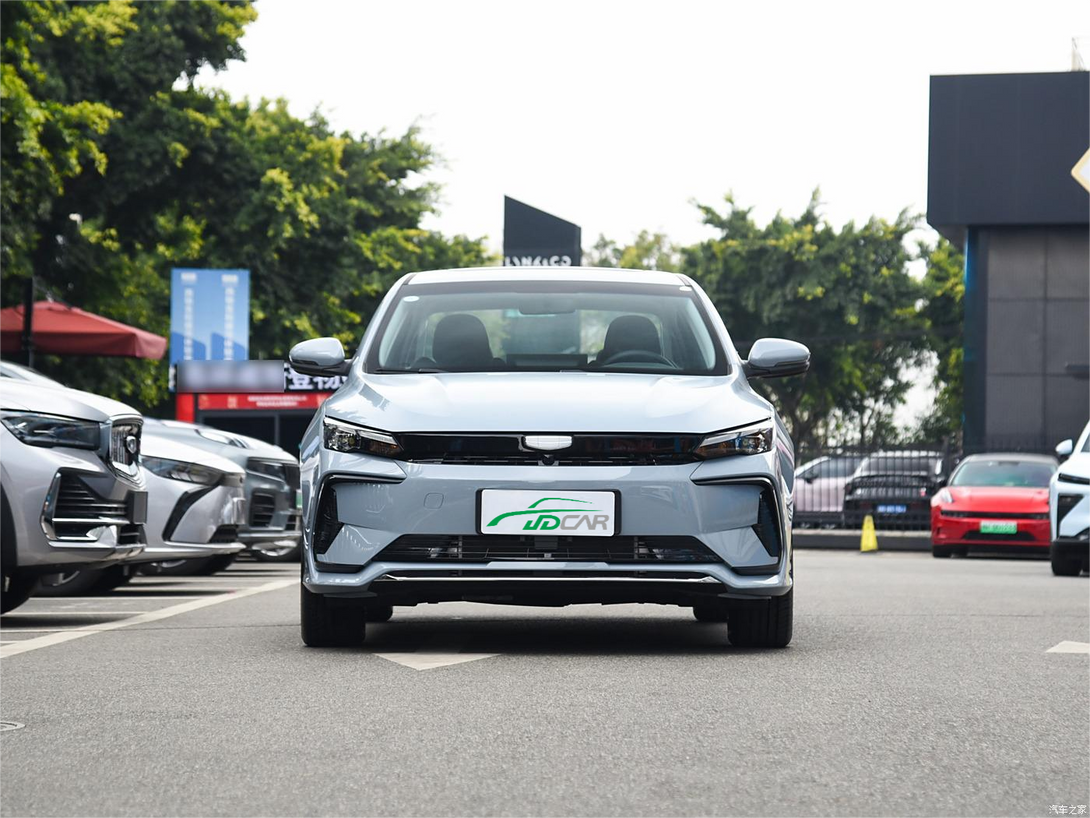

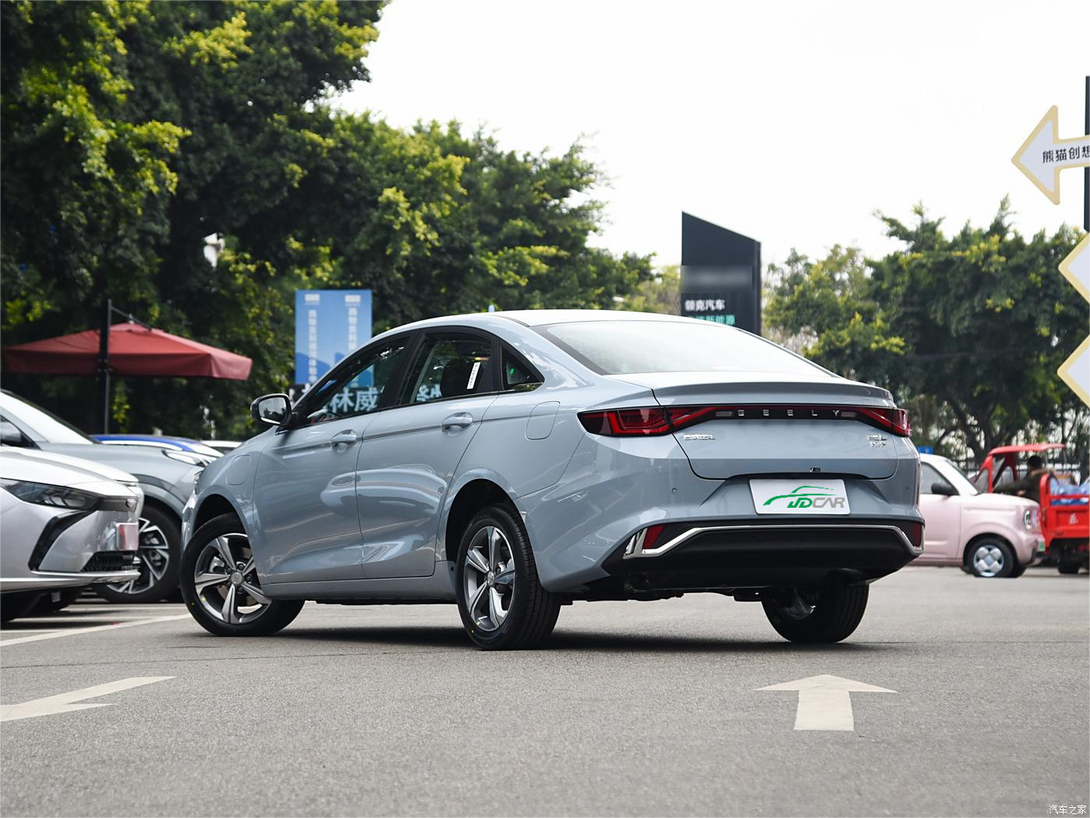

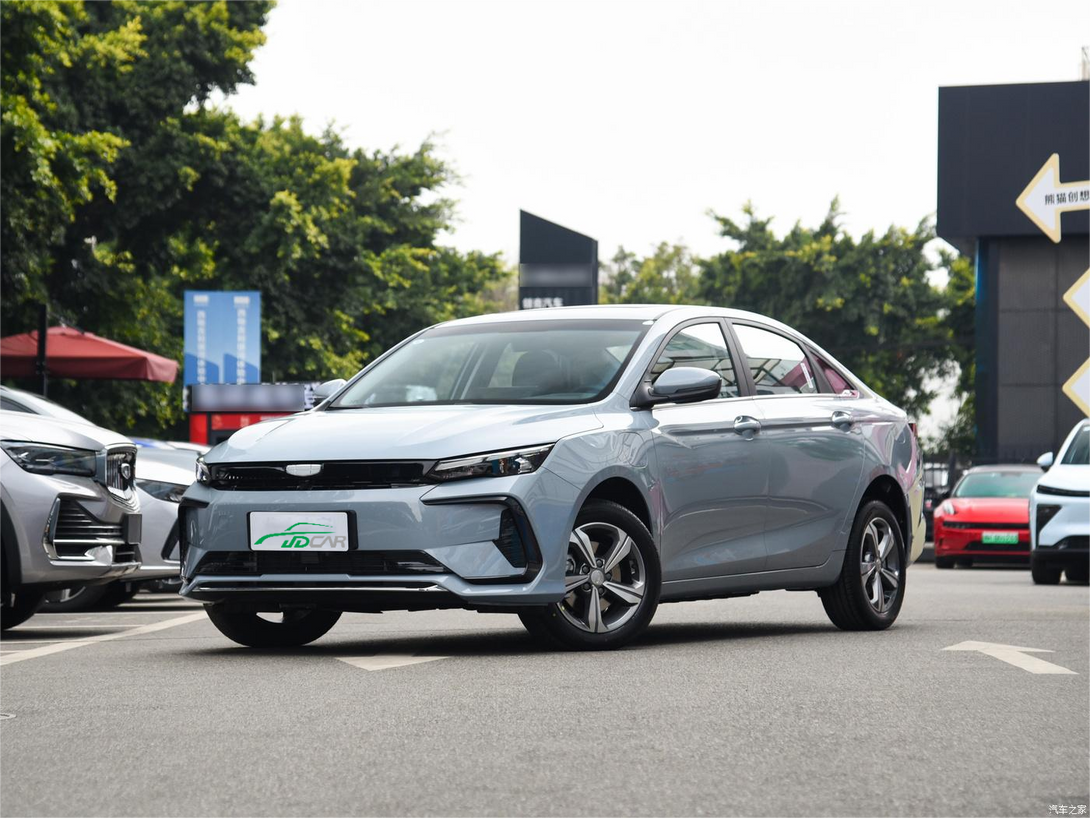

In terms of appearance, the car basically follows the design style of the current Emgrand L, but it has been adjusted for details, such as using a new digital streamer logo, which looks more technological. The interior part has also not changed much, the technology is simple, it has a 10.25-inch LCD dashboard, 12.3-inch floating center control screen, and the use of a new forest green dual interior, plus Thor's own electronic handle, looks particularly fresh. 90% of the interior of the new car is wrapped in soft materials, equipped with the first Rhineline-certified natural skin friendly seat, which not only uses suede skin friendly materials, but also has acupoint heating function.
| common4Models | DihaoL HiP 2024Champion Edition1.5TD-DHT Pro100KMTranscendence | DihaoL HiP 2024Champion1.5TD-DHT Pro100KMExcellence | DihaoLHiP 2024Longteng Edition1.5TD-DHT Pro100KMTranscendence | DihaoL HiP 2024Longteng Edition1.5TD-DHT Pro100KMExcellence |
| Energy Type | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid Plug-in hybrid | |
| Availability | 2023.07 | 2023.07 | 2024.02 | 2024.02 |
| NEDC pure electric cruising range (km) | 100 | 100 | 100 | 100 |
| WLTC pure electric range (km) | 80 | 80 | 80 | 80 |
| Battery fast charging time (hours) | 0.67 | 0.67 | ||
| Battery slow charging time (hours) | 2.5 | 2.5 | 2.5 | 2.5 |
| Maximum power (kW) | 233 | 233 | 233 | 233 |
| Maximum torque (N m) | 610 | 610 | 610 | 610 |
| Gearbox | 3-speed DHT | 3-speed DHT | 3-speed DHT | 3-speed DHT |
| Body structure | 4-door 5-seater sedan | 4-door 5-seater sedan | 4-door 5-seater sedan | 4-door 5-seater sedan |
| engine | 1.5T 181 hp L4 | 1.5T 181 hp L4 | 1.5T 181 hp L4 | 1.5T 181 hp L4 |
| Motor (Ps) | 136 | 136 | 136 | 136 |
| Length*width*height(mm) | 4735*1815*1495 | 4735*1815*1495 | 4735*1815*1495 | 4735*1815*1495 |
| Official 0-100km/h acceleration (S) | 6.9 | 6.9 | 6.9 | 6.9 |
| Maximum speed (km/h) | 230 | 230 | 230 | 230 |
| WLTC comprehensive fuel consumption (L/100km) | 1.4 | 1.4 | 1.4 | 1.4 |
| Minimum state of charge fuel consumption (L/100km) | 3.8 | 3.8 | 3.8 | 3.8 |
| Vehicle warranty | ●Six years or 150,000 km | ●Six years or 150,000 km | ●Six years or 150,000 km | ●Six years or 150,000 km |
| Curb weight(kg)Maximum full load mass (kg) | 1582 | 1582 | 1582 | 1582 |
| 1997 | 1997 | 1997 | 1997 | |
| Body | ||||
| Length(mm) | 4735 | 4735 | 4735 | 4735 |
| Width(mm) | 1815 | 1815 | 1815 | 1815 |
| Height(mm) | 1495 | 1495 | 1495 | 1495 |
| Wheelbase(mm) | 2700 | 2700 | 2700 | 2700 |
| Front wheel track (mm) | 1551 | 1551 | 1551 | 1551 |
| Rear wheelbase(mm) | 1555 | 1555 | 1555 | 1555 |
| Minimum ground clearance without load (mm) | 148 | 148 | 148 | 148 |
| Approach angle (°) | 16 | 16 | 16 | 16 |
| Departure angle(°)Minimum turning radius (m) | twenty one5.5 | twenty one 5.5 | twenty one5.5 | twenty one 5.5 |
| Body structure | Sedan | Sedan | Sedan | Sedan |
| Door opening method | Swing door | Swing door | Swing door | Swing door |
| Number of doors | ●4 | ●4 | ●4 | ●4 |
| Number of seats | ●5 | ●5 | ●5 | ●5 |
| Engine Model | BHE15 | BHE15 | BHE15 | BHE15 |
| Displacement (mL) | 1499 | 1499 | 1499 | 1499 |
| Displacement(L) | 1.5 | 1.5 | 1.5 | 1.5 |
| Air intake form | Turbocharger | Turbocharger | Turbocharger | Turbocharger |
| Engine layout | Sideways | Sideways | Sideways | Sideways |
| Cylinder arrangement | L | L | L | L |
| Number of cylinders | 4 | 4 | 4 | 4 |
| Number of valves per cylinder | 4 | 4 | 4 | 4 |
| Valve mechanism | DOHC | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 181 | 181 | 181 | 181 |
| Maximum power (kW) | 133 | 133 | 133 | 133 |
| Maximum power speed (rpm) | 5500 | 5500 | 5500 | 5500 |
| Maximum torque (N m) | 290 | 290 | 290 | 290 |
| Maximum torque speed (rpm) | 2000-3500 | 2000-3500 | 2000-3500 | 2000-3500 |
| Energy Type | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid |
| Fuel grade | No. 92 | No. 92 | No. 92 | No. 92 |
| Oil supply method | Direct Injection | Direct Injection | Direct Injection | Direct Injection |
| Cylinder head material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Cylinder material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Environmental standards | National VI | National VI | National VI | National VI |
| Motor Type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 100 | 100 | 100 | 100 |
| Total motor horsepower (Ps) | 136 | 136 | 136 | 136 |
| Total torque of motor (Nm) | 320 | 320 | 320 | 320 |
| Maximum power of front motor (kW) | 100 | 100 | 100 | 100 |
| Front motor maximum torque (N m) | 320 | 320 | 320 | 320 |
| System total power (kW) | 233 | 233 | 233 | 233 |
| System comprehensive torque (N·m) | 610 | 610 | 610 | 610 |
| Number of drive motors | Single motor | Single motor | Single motor | Single motor |
| Driving assistance images | ●Reversing image | ●360-degree panoramic image |
|
●360-degree panoramic image |
| Transparent chassis/540-degree imaging | - | ● | ● | |
| Front perception camera | ● Monocular | ● Monocular | ||
| Number of cameras | 5 | ●1 | 5 | |
| Number of ultrasonic radars | 3 | 3 | 3 | 3 |
| Driving function Standard○Select | match-none | |||
| Cruise control system | ● Cruise control | ●Full-speed adaptive cruise controlL2 | ● Cruise control | ●Full-speed adaptive cruise control |
| Driving assistance level | L2 | |||
| Satellite navigation system | ● | ● | ● | |
| Navigation traffic information display | ● | ● | ||
| Map Brand | ●AutoNavi | ●AutoNavi | ●AutoNavi | ●AutoNavi |
| Lane assist | - | |||
| Lane Keeping Assist System | ● | ● | ||
| Lane centering | ● | |||
| Road traffic sign recognition | ||||
| Appearance/Anti-theft ● Standard ○ Optional - None | ||||
| Rim material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Electric trunk | - | |||
| Sensor trunk | ||||
| Electronic engine immobilizer | ● | ● | ● | |
| Central locking system in the car | ● | ● | ● | |
| Key Type | Remote control key | Remote control key | Remote control key | Remote control key |
| Keyless start system | ● | ● | ● | ● |
| Keyless entry function | ●Driving seat | Front row | ●Driving seat | Front row |
| Remote start function | ● | |||
| Battery preheating | ● | |||
| Exterior lighting ● Standard ○ Optional | Matching - No | |||
| Low beam light source | ● LED | ● LEDLED | ● LED | ●led |
| High beam light source | ● LED | LED | LED | |
| LED daytime running lights | ||||
| Adaptive high and low beam | ||||
| Automatic headlights | ● | ● | ||
| Front fog lights | ||||
| Height-adjustable headlights | ||||
| Headlight Delay Off | ||||
| Skylight/Glass● Standard ○ Optional | Matching-No | |||
| Skylight Type | Electric sunroof | Electric sunroof | Electric sunroof | Electric sunroof |
| Front/rear electric windows | Front● / Back● | Front● / Back● | Front● / Back● Front● / Back● | |
| One-touch window lifting function●Whole car●Whole car●Whole car●Whole car | ||||
| Window anti-pinch function | ● | ● | ● | |
| Car makeup mirror | ●Driver's seat●Co-pilot | ●Driver's seat●Co-pilot | ●Driver's seat●Co-pilot | ●Driver's seat●Co-pilot |
| Rear wiper | ||||
| Rain sensor wiper function | ||||
| Exterior rearview mirror ● Standard ○ Optional | Matching-No | |||
| Exterior mirror function | ●Electric adjustment ●Heated rearview mirror | ●Electric adjustment ●Electric folding ●Heated rearview mirror ●Automatic folding when the car is locked | ●Electric adjustment ●Heated rearview mirror | ●Electric adjustment ●Electric folding ●Heated rearview mirror ●Automatic folding when the car is locked |
| Screen/System●Standard○Optional | Matching-No | |||
| Central control color screen | ●Touch LCD screen | ● Corner touch LCD screen | ● Corner touch LCD screen | ● Corner touch LCD screen |
| Central control screen size | 12.3 inches | 12.3 inches | 12.3 inches | 12.3 inches |
| Central control screen type | ●LCD | LCD | ●LCD | ●LCD |
| Bluetooth/Car Phone | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | ●Support HUAWEIHiCar | ●Support HUAWEIHiCar | ●Support HUAWEI HiCar | ●Support HUAWEIHiCar |
| Voice recognition control system | ●Multimedia system●Navigation●Telephone●Air conditioning●Sunroof | ●Multimedia system●Navigation●Telephone●Air conditioning●Sunroof | ●Multimedia system●Navigation●Telephone●Air conditioning●Sunroof | ●Multimedia system●Navigation●Telephone●Air conditioning●Sunroof |
| Voice assistant wake-up word | ●Hello, Geely | ●Hello, Geely | ●Hello, Geely | ●Hello, Geely |
| Voice wake-up word-free | ● | ● | ● | ● |
| Voice wake-up recognition by region | ●Dual area | ●Dual area | ●Dual area | ●Dual area |
| In-vehicle intelligent system | Geely Galaxy OS | Geely Galaxy OS | Geely Galaxy OS | Geely Galaxy OS |
| Car Intelligent Chip | ●Ecarx E02 | ●Ecarx E02 | ●Ecarx E02 | ●Ecarx E02 |
| Vehicle system memory (GB) | ●6 | ●6 | ●6 | ●6 |
| Vehicle system storage (GB) | ● 64 | ●64 | ●64 | ●64 |
| Intelligent configuration●Standard configuration○ | Optional-None | |||
| Internet of Vehicles | ● | ● | ● | |
| 4G/5G Network | 4G | ● 4G | 4G | 4G |
| OTA UpdateWi-Fi Hotspot | ● | ● | ● ● | |
| ● | ● | ● | ||
| Mobile APP remote function | ●Window control●Vehicle start●Charging management●Air conditioning control●Vehicle condition query/diagnosis | ●Window control●Vehicle start●Charging management●Air conditioning control●Vehicle condition query/diagnosis | ●Window control●Vehicle start●Charging management●Air conditioning control●Vehicle condition query/diagnosis | ●Window control●Vehicle start●Charging management●Air conditioning control●Vehicle condition query/diagnosis |
| Steering wheel/interior mirror●Standard | ○Optional-None | |||
| Steering wheel material | Plastic | Leather | Plastic | Leather |
| Steering wheel position adjustment | ●Manual up and down + front and back adjustment | ●Manual up and down + front and back adjustment | ●Manual up and down + front and back adjustment | ●Manual up and down + front and back adjustment |
| Gear shifting | ●Electronic gear shift | ●Electronic gear shift | ●Electronic gear shift | ●Electronic gear shift |
| Multi-function steering wheel | ● | ● | ● | ● |
| Steering wheel shiftSteering wheel heating | ||||
| Steering wheel memory | ||||
| Trip computer display screen | Color | Color | Color | Color |
| Full LCD instrument panel | ● | ● | ● | ● |
| LCD instrument size | 10.25 inches | 10.25 inches | 10.25 inches | 10.25 inches |
| Dashboard screen material | ● LCD | LCD | ● LCD | LCD |
| Interior rearview mirror function | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| In-car charging ● Standard ○ Optional | Matching-No | |||
| Multimedia/charging port | USB | USB | ● USB | USB |
| USB/Type-C interface quantity | ●2 in the front row/1 in the back row | ●2 in the front row/1 in the back row | ●2 in the front row/1 in the back row | ●2 in the front row/1 in the back row |
| USB/Type-C Maximum charging power | 10W | 10W | 10W | 10W |
| Mobile phone wireless charging function | ||||
| Seat Configuration ●Standard○Select | match-none | |||
| Seat Material | ●Imitation leather | ●Imitation leather | ●Imitation leather | ●Imitation leather |
| Main seat adjustment | ●Front and rear adjustment ●Backrest adjustment ●Height adjustment (2-way) | ●Front and rear adjustment ●Backrest adjustment ●Height adjustment (2-way) | ●Front and rear adjustment ●Backrest adjustment ●Height adjustment (2-way) | ●Front and rear adjustment ●Backrest adjustment ●Height adjustment (2-way) |
| Co-seat adjustment method | ●Front and rear adjustment ●Backrest adjustment | ●Front and rear adjustment ●Backrest adjustment | ●Front and rear adjustment ●Backrest adjustment | ●Front and rear adjustment ●Backrest adjustment |
| Electric adjustment of driver's seat and passenger seat | Main/Sub-Heating | Main/Secondary- | ||
| Front seat functions | Heating | |||
| Electric seat memory function | ||||
| Front passenger seat rear adjustable buttons | ||||
| Second row seat adjustment | ||||
| Rear seat folding | ●Proportional down | ●Proportional down | ●Proportional down | ●Proportional down |
| Front/rear center armrest | Previous/back- | Previous/back● | Previous/back- | Previous/back● |
| Rear cup holder | ||||
| Audio/Interior Lighting●Standard | ○Optional-None | |||
| Speaker Brand Name | ||||
| Number of speakers | ●4 speakers | ●8 speakers | ●4 speakers | ●8 speakers |
| Interior ambient lighting | ||||
| Air conditioner/refrigerator●Standard○Optional | match-none | |||
| Air conditioning temperature control method | ● Automatic air conditioning | ● Automatic air conditioning | ● Automatic air conditioning | ● Automatic air conditioning |
